CYKE

FALCON X FULL SUSPENSION EBIKE

FALCON X FULL SUSPENSION

EBIKE

FALCON X FULL SUSPENSION EBIKE

Regular price Sale price $3,399.00
Sale Sold out
Color
Size
ul certification
Use coupon code or Subscribe to get 10% OFF on checkout
View full details

Save With Open Box

FALCON X FULL SUSPENSION (OPEN BOX)

EBIKE

Regular price $2,569.00
Regular price Regular price $2,949.00 Sale price $2,569.00

Full Suspension System

The Falcon X features a full suspension setup with an RST Renegade front fork offering 80–120mm of travel, and a RockShox RS-DELUXE SELECT-C1 rear shock equipped with a 190mm x 45mm iDebonAir+ air spring and Maxima Plush dynamic suspension lubricant. This system provides superior shock absorption, enhancing comfort, control, and stability over rough trails and technical descents.

1000W BAFANG Mid-Drive Motor

Powered by a 1000W BAFANG mid-drive motor, a peak output of 1100W can be provided for an exhilarating ride! Reach speeds of up to 28mph effortlessly with this high-performance motor, giving you the ultimate thrill on every journey.

960Wh Battery with LG Cells

The 48V/20Ah BAFANG battery with LG cells delivers a range of up to 65 miles per charge, backed by advanced BMS technology. This reliable battery ensures consistent power and long-lasting endurance for all your rides, so you can explore further with confidence.

TEKTRO Brake System


Equipped with TEKTRO HD-E730 hydraulic disc brakes, the Falcon X ensures powerful stopping performance with a 4-piston caliper and 203x2mm rotors. This system provides precise, reliable braking and is ideal for navigating slippery, snowy terrains, maintaining maximum control and safety in challenging conditions.

Torque Sensor

The Falcon X’s torque sensor adjusts motor output based on your pedaling force, ensuring smooth and natural acceleration. This provides a seamless riding experience, with enhanced control and efficiency, ideal for tackling rugged trails and varying terrain.

Maxxis Minion FBF/FBR Tires

Comes with Maxxis Minion FBF (front) and FBR (rear) tires, designed for exceptional cornering and low rolling resistance. The FBF offers excellent traction, while the FBR maximizes grip and minimizes resistance, ensuring superior control on technical trails and rough terrains. Perfect for riders seeking precision and confidence in challenging conditions.

SRAM 9-Speed Gear System

The Falcon X is equipped with a SRAM 9-speed gear system, featuring an SL-X5 shifter and RD-X5 derailleur for precise and smooth shifting. The SRAM CS-PG-950 cassette ensures reliable performance, providing seamless gear transitions for an efficient, comfortable ride on diverse terrains.

Durable and Sleek

The Falcon X boasts an Italian flat-welded aluminum alloy frame, incorporating advanced techniques such as baking varnish, hydraulic forming, and integrated welding. This results in a frame that offers incredible durability, strength, and a sleek, modern aesthetic that’s both stylish and functional.

CYKE APP

With a BAFANG display, the Falcon X connects seamlessly to the CYKE app via Bluetooth, offering real-time data, customizable settings, and 5 levels of backlight adjustment on its IP66-rated LCD screen. This integration enhances your riding experience, providing smart, efficient control for every adventure.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Live Technical Support

    Live Technical Support

  • Local Dealer Support

    Local Dealer Support

  • Extend Warranty Optional

    Extend Warranty Optional

  • Secure Checkout

    Secure Checkout

  • 14 Days Return

    14 Days Return

  • Speed

    Speed

    Class 1-3 Electric Bike, With 28 MPH by pedal, Class 3 Pedal Assist

  • Motor

    Motor

    Powerful 750W Sustained Geared Hub Motor

  • Range

    Range

    Up to 80 miles, Depending On Rider Weight, Terrain, Incline, Level Of Assist, Etc.

Collapsible content

Key Features

The Falcon X Full Suspension eBike is designed for versatile off-road exploration, featuring several key attributes:
  1. Powerful Mid-Drive Motor: Equipped with a BAFANG mid-drive motor delivering 1000W of continuous power and peaking at 1100W, the Falcon X achieves speeds up to 28 mph, providing a dynamic riding experience.

  2. High-Capacity Battery: Its 48V/20Ah (960Wh) BAFANG battery, utilizing LG cells and advanced Battery Management System (BMS) technology, offers a range of up to 65 miles per charge, ensuring extended adventures without frequent recharging.

  3. Robust Fat Tires: Fitted with Maxxis Minion FBF (front) and FBR (rear) 26x4.8" tires, the bike ensures exceptional traction and control across diverse conditions, including snow and loose surfaces.

  4. Responsive Torque Sensor: The integrated torque sensor adjusts motor assistance based on pedaling force, delivering natural acceleration and enhanced control tailored to the rider's input.

  5. Reliable Braking System: Featuring TEKTRO HD-E730 hydraulic disc brakes with 4-piston calipers and 203mm rotors, the Falcon X offers dependable stopping power, crucial for maintaining safety on challenging terrains.

  6. Smart Connectivity: Equipped with a BAFANG display and Bluetooth connectivity to the CYKE app, the eBike provides real-time data and customizable settings, enhancing the overall riding experience.

Technical Specification

  • Model
    FALCON X
  • Battery
    48V/20Ah, 960Wh Lithium-ion battery with LG 21700 cells
  • Motor
    BAFANG Mid-drive, 1000W rated power, 1100W peak power, 160 Nm of torque, based on CAN6.3 protocol
  • Range
    65 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc.
  • Display
    LCD display with Bluetooth, 4" TFT color screen, IP66
  • Charger
    Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A.
  • Charging Time
    Approx. 8-10 hours
  • Sensor
    Torque sensor
  • Max Speed
    28 MPH both in pedal-assist and throttle modes.
  • Pedal Assist Modes
    5 Levels
  • Frame
    Aluminum alloy, 17"/19"Size, 150mm travel
  • Fork
    RST RENEGADE 26, 80-120mm travel, 32mm alloy pillar, air spring and oil damping, hydraulic lockout
  • Shock
    ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant
  • Rim
    Aluminum ring, 12G 36H AV, 580*98mm
  • Front Tire
    Maxxis Minion FBF, 26x4.8", Snow tires
  • Rear Tire
    Maxxis Minion FBR, 26x4.8", Snow tires
  • Front Hub
    Aluminum alloy, disc brake, 12G 36H, ID15x150mm
  • Rear Hub
    Aluminum alloy, disc brake, 12G 36H, ID12*197mm
  • Spoke
    Black stainless, 12G, 258mm
  • Shifter
    SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™
  • Rear Derailleur
    SRAM RD-X5, 9 speed, EXACT ACTUATION™
  • Cassette
    SRAM CS-PG-950, 9 speed
  • Crank arm
    BAFANG 170mm length
  • Chainring
    BAFANG MM G520, 40T
  • Chain
    KMC E10S for e-bikes
  • Pedal
    Aluminum alloy
  • Saddle
    VELO, boron steel, 160mm width
  • Seat Post
    Aluminum alloy, Ø31.6*264mm
  • Stem
    Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm
  • Handlebar
    Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm
  • Grips
    VELO, trail grip
  • Brakes
    TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor
  • Brake rotor
    TEKTRO HD-E730, 3T, 203x2mm
  • Kickstand
    Side Kickstand
  • Weight Limit
    300 lbs
  • Net Weight
    82.7 lbs
  • Gross Weight
    105.2 lbs
  • Bike Size
    82.84 x 30.9 x 45.79 in
  • Box Dimension
    69.7 x 33.5 x 11.6 in
*eJOE has the right without notice to the consumer to substitute components of at least equal quality for advertised eJOE ebike components in the event of the unavailability of such advertised components.

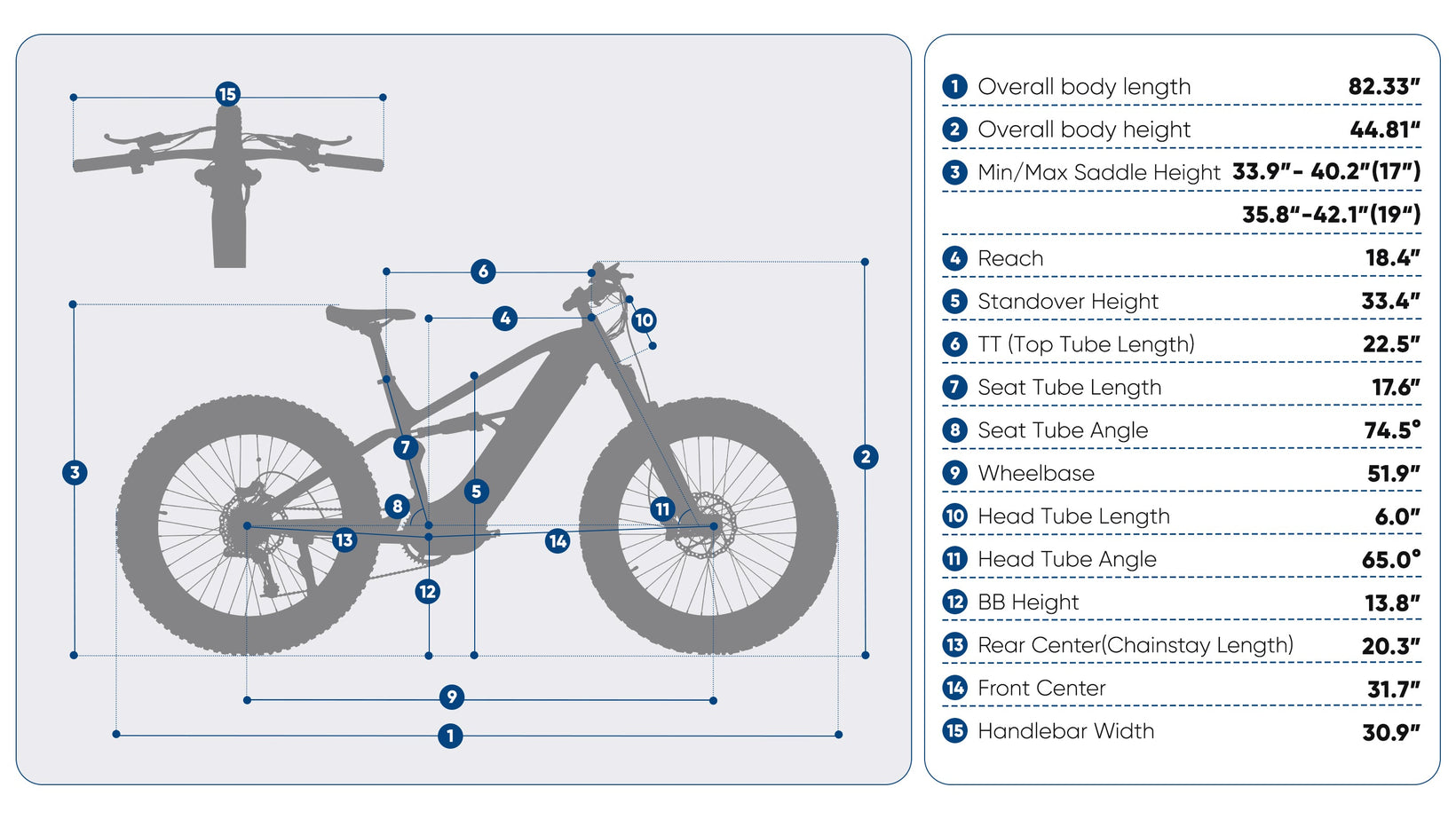

Geometry
